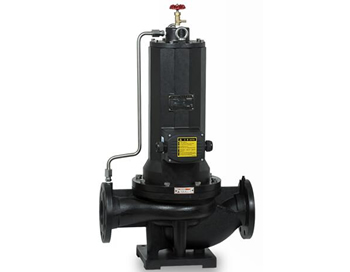

PBG type shielded pipeline pump

PBG type shielded pipeline pump is suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire pressurization, long-distance transportation, HVAC refrigeration cycle, bathroom and other cold and warm water cycle pressurization and equipment supporting. It is especially suitable for occasions with high requirements for vibration and noise, such as underground pump rooms, air-conditioning refrigeration systems, etc. Hot water type: suitable for occasions such as energy, metallurgy, chemical industry, textile, papermaking, hotels, restaurants, bathrooms, boiler hot water pressurized circulation transmission and urban heating system circulation. Anti-corrosion type: suitable for petroleum, chemical, metallurgy, electric power, papermaking, food, pharmaceutical and synthetic fiber sectors.

Overview:

PBG-type shielded pipeline pump has absorbed the design of the shielded pump, applied the shielding technology of the motor to the field of fluid transportation, and launched a series of new products to meet the needs of the domestic market. It has the obvious characteristics of design specifications, high degree of generalization, reasonable structure, stable performance, low noise in operation, and no vibration. It is an ideal product for conventional horizontal centrifugal pumps and vertical pipeline pumps.

The main purpose:

1. Ordinary type: transport clear water and other liquids with physical and chemical properties similar to clear water, and the temperature does not exceed 80°C. It is suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, garden sprinkler irrigation, fire pressurization, long-distance transportation, HVAC refrigeration cycle, bathroom and other cold and warm water cycle pressurization and equipment supporting. It is especially suitable for occasions with high requirements for vibration and noise, such as underground pump rooms, air-conditioning refrigeration systems, etc.

2. Hot water type: It is used to transport soft water with a temperature not exceeding 160°C without solid particles. It is suitable for energy, metallurgy, chemical industry, textile, papermaking, hotels, restaurants, bathrooms, boilers, hot water pressurized circulation and urban heating systems. Circulation and other occasions.

3. Anti-corrosion type: transporting liquids that do not contain solid particles, are corrosive, and have a viscosity similar to water. They are suitable for petroleum, chemical, metallurgical, electric power, paper, food, pharmaceutical and synthetic fiber sectors.

Features:

1. The pump structure is compact, the machine and pump are integrated, and the volume is small. Its vertical structure has a small installation area, stable operation, and installation does not need to be adjusted.

2. The inlet and outlet of the pump are designed with flanges of the same specifications and located on the same center line. They can be directly installed on the pipeline like a valve, and the center is low, which is convenient for pipeline layout and particularly convenient for installation.

3. The pump and the motor are coaxial, and the axial dimension is short, which makes the pump run more smoothly and has low noise.

4. The traditional shaft seal method is cancelled, and the leakage of the conveying medium is avoided, so it has the remarkable feature of completely no leakage.

5. The use of sliding bearings makes the pump run particularly smoothly, with extremely low vibration and noise.

6. Convenient installation and maintenance, no need to dismantle the pipeline system, as long as the connecting body nut is removed, all the rotor parts can be extracted for inspection and maintenance.

7. The series and parallel operation modes of pumps can be carried out according to the requirements of use, that is, the needs of flow and head.

Performance parameters:

型號	流量Q		揚程H (m)	效率η (%)	轉速n (r/min)	電機功率 (kw)	必需汽蝕余量 (m)	重量 (kg)
型號	(m3/h)	(L/s)	揚程H (m)	效率η (%)	轉速n (r/min)	電機功率 (kw)	必需汽蝕余量 (m)	重量 (kg)
PBG40-100	6.3	1.75	12.5	54	1450	0.55	3.5	32
PBG40-100A	5.6	1.56	10	52	1450	0.37	3.5	32
PBG40-125	6.3	1.75	20	46	1450	1.1	3.5	34
PBG40-125A	5.6	1.56	16	45	2900	0.75	3.5	33
PBG40-160	6.3	1.75	32	40	2900	2.2	3.5	47
PBG40-160A	5.9	1.64	28	39	2900	1.5	3.5	43
PBG40-160B	5.5	1.53	24	38	2900	1.1	3.5	38
PBG40-200	6.3	1.75	50	33	2900	4.0	3.5	74
PBG40-200A	5.9	1.64	44	31	2900	3.0	3.5	62
PBG40-200B	5.3	1.47	36	29	2900	2.2	3.5	52
PBG40-250	6.3	1.75	80	28	2900	7.5	3.5	105
PBG40-250A	5.9	1.64	70	28	2900	5.5	3.5	98
PBG40-250B	5.5	1.53	60	27	2900	4.0	3.5	77
PBG40-100(I)	12.5	3.47	12.5	62	1450	1.1	3.5	34
PBG40-100(I)A	11	3.05	10	60	1450	0.75	3.5	31
PBG40-125(I)	12.5	3.47	20	58	1450	1.5	3.5	38
PBG40-125(I)A	11	3.05	16	57	1450	1.1	3.5	33
PBG40-160(I)	12.5	3.47	32	52	2900	3.0	3.5	56
PBG40-160(I)A	11.7	3.25	28	51	2900	2.2	3.5	47
PBG40-160(I)B	10.4	2.89	22	50	2900	1.5	3.5	43
PBG40-200(I)	12.5	3.47	50	46	2900	5.5	3.5	85
PBG40-200(I)A	11.7	3.25	44	45	2900	4.0	3.5	75
PBG40-200(I)B	10.6	2.94	36	44	2900	3.0	3.5	63
PBG40-250(I)	12.5	3.47	80	38	2900	11	3.5	145
PBG40-250(I)A	11.6	3.22	70	38	2900	7.5	3.5	95
PBG40-250(I)B	10.8	3.0	60	37	2900	7.5	3.5	94
PBG40-250(I)C	10.0	2.78	52	36	2900	5.5	3.5	88
PBG50-100	12.5	3.47	12.5	62	1450	1.1	3.5	36
PBG50-100A	11	3.05	10	60	1450	0.75	3.5	35
PBG50-125	12.5	3.47	20	58	1450	1.5	3.5	43
PBG50-125A	11	3.05	16	57	1450	1.1	3.5	38
PBG50-160	12.5	3.47	32	52	2900	3.0	3.5	59
PBG50-160A	11.7	3.25	28	51	2900	2.2	3.5	51
PBG50-160B	10.4	2.89	22	50	2900	1.5	3.5	47
PBG50-200	12.5	3.47	50	46	2900	5.5	3.5	101
PBG50-200A	11.7	3.25	44	45	2900	4.0	3.5	80
PBG50-200B	10.6	2.94	36	44	2900	3.0	3.5	68
PBG50-250	12.5	3.47	80	38	2900	11	3.5	160
PBG50-250A	11.6	3.22	70	38	2900	7.5	3.5	115
PBG50-250B	10.8	3.0	60	37	2900	7.5	3.5	114
PBG50-250C	10.0	2.78	52	36	2900	5.5	3.5	108
PBG50-100(I)	25	6.94	12.5	69	1450	1.5	3.8	41
PBG50-100(I)A	22.3	6.19	10	67	1450	1.1	3.8	36
PBG50-125(I)	25	6.94	20	68	1450	3.0	3.8	56
PBG50-125(I)A	22.3	6.49	16	66	1450	2.2	3.8	48
PBG50-160(I)	25	6.94	32	63	1450	4.0	3.8	72
PBG50-160(I)A	23.4	6.5	28	62	1450	4.0	3.8	71
PBG50-160(I)B	21.6	6.0	24	58	1450	3.0	3.8	59
PBG50-200(I)	25	6.94	50	58	2900	7.5	3.8	108
PBG50-200(I)A	23.5	6.53	44	57	2900	7.5	3.8	107
PBG50-200(I)B	21.8	6.06	38	55	2900	5.5	3.8	100
PBG50-250(I)	25	6.94	80	50	2900	15.0	3.8	175
PBG50-250(I)A	23.4	6.5	70	50	2900	11.0	3.8	165
PBG50-250(I)B	21.6	6.0	60	48	2900	11.0	3.8	165
PBG50-315(I)	25	6.94	125	40	2900	30.0	3.8	310
PBG50-315(I)A	23.7	6.58	113	40	2900	22.0	3.8	245
PBG50-315(I)B	22.5	6.25	101	39	2900	18.5	3.8	215
PBG50-315(I)C	20.6	5.72	85	38	2900	15.0	3.8	195
PBG65-100	25	6.94	12.5	69	1450	1.2	3.8	46
PBG65-100A	22.3	6.19	10	67	1450	1.1	3.8	41
PBG65-125	25	6.94	20	68	1450	3.0	3.8	58
PBG65-125A	22.3	6.19	16	66	1450	2.2	3.8	49
PBG65-160	25	6.94	32	63	1450	4.0	3.8	75
PBG65-160A	23.4	6.5	28	62	1450	4.0	3.8	75
PBG65-160B	21.6	6.0	24	58	1450	3.0	3.8	63
PBG65-200	25	6.94	50	58	2900	7.5	3.8	107
PBG65-200A	23.5	6.53	44	57	2900	7.5	3.8	107
PBG65-200B	21.8	6.06	38	55	2900	5.5	3.8	100
PBG65-250	25	6.94	80	50	2900	15.0	3.8	180
PBG65-250A	23.4	6.5	70	50	2900	11.0	3.8	170
PBG65-250B	21.6	6.0	60	49	2900	11.0	3.8	170
PBG65-315	25	6.94	125	40	2900	30.	3.8	320
PBG65-315A	23.7	6.58	113	40	2900	22.0	3.8	255
PBG65-315B	22.5	6.25	101	39	2900	18.5	3.8	225
PBG65-315C	20.6	5.72	85	38	2900	15.5	3.8	205
PBG65-100(I)	50	13.9	12.5	73	1450	3.0	4.2	63
PBG65-100(I)A	44.7	12.5	10	72	1450	2.2	4.2	53
PBG65-125(I)	50	13.9	20	72.5	1450	5.5	4.2	99
PBG65-125(I)A	45	12.5	16	71	1450	4.0	4.2	78
PBG65-160(I)	50	13.9	32	71	1450	7.5	4.2	103
PBG65-160(I)A	46.7	13.0	28	70	1450	7.5	4.2	103
PBG65-160(I)B	43.3	12.0	24	69	1450	5.5	4.2	97
PBG65-200(I)	50	13.9	50	67	2900	15.0	4.2	176
PBG65-200(I)A	47	13.1	44	66	2900	11.0	4.2	166
PBG65-200(I)B	43.5	12.1	38	65	2900	7.5	4.2	114
PBG65-250(I)	50	13.9	80	59	2900	22.0	4.2	235
PBG65-250(I)A	46.7	13.0	70	59	2900	18.5	4.2	205
PBG65-250(I)B	43.3	12.0	60	58	2900	15.0	4.2	180
PBG65-315(I)	50	13.9	125	54	2900	34.0	4.2	350
PBG65-315(I)A	46.5	12.9	110	54	2900	30.0	4.2	355
PBG65-315(I)B	44.5	12.4	100	53	2900	30.0	4.2	335
PBG65-315(I)C	41	11.4	85	51	2900	22.0	4.2	270
PBG80-100	50	13.9	12.5	73	1450	3.0	4.2	63
PBG80-100A	44.7	12.4	10	72	1450	2.2	4.2	54
