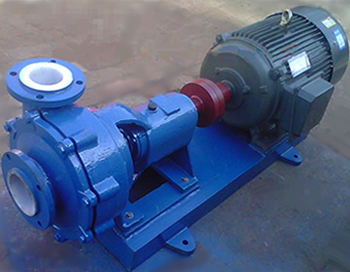

UHB-ZK type corrosion-resistant and wear-resistant mortar pump
UHB series corrosion-resistant and wear-resistant slurry pumps are used in fertilizers, non-ferrous metal smelting, chemicals, chlor-alkali industry, water treatment industry, iron and steel, desulfurization circulating pumps, coal chemical industries, etc.
UHB-ZK series corrosion-resistant and wear-resistant pumps are single-stage single-suction cantilever centrifugal pumps. The flow parts are made of steel-lined ultra-high molecular weight polyethylene (UHMWPE). This material is a new generation of corrosion-resistant and wear-resistant engineering plastics for pumps, and its outstanding feature is that it has wear resistance and impact resistance (especially low temperature impact resistance) among all plastics. Creep resistance (resistance to environmental stress cracking) and excellent corrosion resistance.
The salient features of the pump are: multi-function, that is, a pump can adapt to various working conditions, such as transporting acid, alkaline clear liquid or slurry; various corrosive slurries in the smelting industry; various dilute acids in the sulfuric acid industry; environmental protection Various types of sewage in the industry. The pump is resistant to corrosion and wear, and has a wide range of applications.
Brief description of technical performance:
1) Model: UHB-ZK series corrosion-resistant and wear-resistant pump
2) Structure and characteristics:
(1) Corrosion-resistant and wear-resistant, one pump for multiple purposes, suitable for acid-base clear liquid slurry.
(2) The pump body is made of steel-lined ultra-high molecular weight polyethylene structure with a thickness of 8-20mm. The pump uses patented tortoise shell mesh lining technology. Compared with other similar pumps, the lining layer has good thermal deformation resistance and crack resistance. , Anti-falling, high use temperature and other advantages.
(3) There are two types of impeller separated type and closed type, which can be selected according to the condition of the medium.
(4) Seal: K type dynamic seal, G3 type mechanical seal.
3) Applicable medium: sulfuric acid with a concentration of less than 80%, nitric acid with a concentration of less than 50%, hydrochloric acid with various concentrations, liquid caustic soda, suitable for both clear liquid and slurry.
4) Main technical parameters: operating temperature -20℃～105℃ (using modified material U00), inlet diameter 32～350mm, flow rate 5～2600m3/h, head within 80m.
Scope of application:
1) Sulfuric acid and phosphate fertilizer industry: transport of dilute acid, mother liquor, sewage, sea water, fluorosilicic acid containing silica gel, phosphoric acid slurry and other media.
2) Non-ferrous metal smelting industry: It is especially suitable for various acids, corrosive ore slurry, and slurry (for filter press) electrolyte for lead, zinc, gold, silver, copper, manganese, cobalt, rare earth and other hydrometallurgical smelting. , Sewage and other media transportation.
3) Chemical and other enterprises: various sulfuric acid, hydrochloric acid, alkaline, oil clear liquid or slurry positions. Production of titanium dioxide, iron red powder, production of various dyes and pigments, non-metallic mineral processing and other industries.
4) Chlor-alkali industry: hydrochloric acid, liquid caustic soda, electrolyte, etc.
5) Water treatment industry: pure water, high purity water, sewage (leather sewage, electroplating sewage, electronic sewage, papermaking sewage, textile sewage, food sewage, domestic sewage, pharmaceutical sewage, etc.).
6) Iron and steel enterprises: sulfuric acid and hydrochloric acid posts in the pickling system, sewage with impurities.
7) Wet desulfurization circulating pump: It can be used for alkaline, acidic and corrosive positions at the same time.
8) The transportation of corrosive liquids and coal slurry in the coal industry and coal chemical industry; pumps for coal washing.
