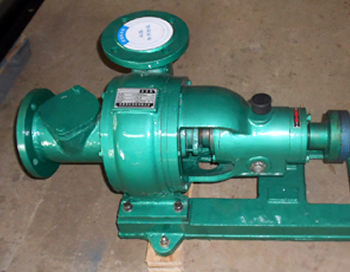

JPW energy-saving sewage pump

JPW energy-saving sewage pump is used in environmental protection, water plant and municipal construction, papermaking, chemical, building materials production (such as asbestos tile manufacturing), food, printing and dyeing and other industries. It is a high-quality, high-efficiency and energy-saving product that ordinary sewage pumps cannot **

This series of pumps adopts two-phase flow theory design, high efficiency and energy saving, wide impeller flow path, semi-open type, no clogging, front and rear detachable, convenient for maintenance, no need to disassemble the pipeline during operation, and the pump inlet is equipped with a cleaning pump inlet blockage Hand hole, opening the hand hole cover can easily clean the pump inlet, the pump shaft seal part has an external water pipe, and a certain pressure of clean water is passed in for the lubrication and cooling of the sealing part. The material of the wetted parts is generally made of ordinary cast iron, and can also be made of nodular cast iron, cast steel, wear-resistant high-chromium cast iron, etc. according to user needs, and must be specified when ordering.

The pump has high working efficiency. The design of the two-phase flow theory is based on the JPW series pump, which is 3-10% more efficient than ordinary sewage pumps, and saves energy and reduces consumption by 15-30%. Good anti-cavitation performance and long life. No clogging, high sewage concentration.

JPW energy-saving sewage pump is suitable for environmental sewage treatment, water plant and municipal construction, papermaking, chemical industry, building materials production (such as asbestos tile manufacturing), food, printing and dyeing and other industries. It is a high-quality, high-efficiency and energy-saving product that ordinary sewage pumps can't achieve.

型號(hào)	流量 m³/h	揚(yáng)程 M	功率 Kw	型號(hào)	流量 m³/h	揚(yáng)程 M	功率 Kw
80JPW-50-6	30-60	7-5	2.2-4	150JPW-200-14	120-240	13-11	11-6
80JPW-60-12	30-70	14-12	4-4	150JPW-240-14	145-290	14-11	15-6
80JPW-65-15	40-80	16-14	5.5-4	150JPW-210-16	125-250	15-13	15-6
80JPW-50-20	30-60	23-21	5.5-4	150JPW-260-16	155-310	15-13	18.5-6
80JPW-55-25	35-70	26-24	7.5-4	150JPW-300-30	180-360	29.5-26	37-4
80JPW-60-35	35-70	37-33	11-4	150JPW-370-30	220-400	29.5-26	45-4
80JPW-70-40	40-80	41-37	15-4	150JPW-320-35	190-380	36-32	45-4
80JPW-80-45	55-100	44-40	18.5-4	150JPW-400-35	240-480	34-29	55-4
100JPW-90-18	55-110	19-17	7.5-4	125JPW-130-38	80-160	40-35.5	22-4
100JPW-110-20	65-130	23-21	11-4	125JPW-120-32	70-140	34-29	18.5-4
100JPW-80-20	50-100	21-19	7.5-4	125JPW-90-17	55-110	18-15.5	7.5-6
100JPW-80-25	50-100	29-25	11-4	150JPW-300-15	180-360	16-14	18.5-6
100JPW-70-30	40-80	32-28	11-4	150JPW-280-12	170-340	13-11	15-6
100JPW-80-35	50-100	37-33	15-4	150JPW-430-32	260-520	34-29	55-4
100JPW-90-40	50-110	43-37	18.5-4	150JPW-400-28	240-480	30-25	45-4
100JPW-150-16	90-180	19-17	15-6	150JPW-340-25	210-430	27-20	37-4
100JPW-160-30	95-190	32-28	22-4	150JPW-360-36	215-430	39-32	55-4
100JPW-180-35	110-220	37-32	30-4	150JPW-370-14	220-440	15-13	22-6
100JPW-200-40	120-240	43-37	37-4	150JPW-350-12	210-420	13-11	18.5-6
100JPW-130-11	80-160	12-9	7.5-6	150JPW-570-34	340-680	35-30	75-4
100JPW-100-22	60-120	23-21	11-6	150JPW-500-27	310-620	28-24	55-4
100JPW-130-45	80-160	49-43	30-4	250JPW-800-25	480-960	26.5-23	90-4
100JPW-140-50	85-170	55-48	37-4	250JPW-500-10	300-600	11-9	22-6
100JPW-200-55	120-240	58-51	55-4	200JPW-500-43	300-600	44-40	90-4
150JPW-160-15	95-190	15-12	11-6	200JPW-460-37	280-550	39-34	75-4
150JPW-200-25	120-240	2.5-22.5	22-4	200JPW-600-14	360-720	15-12	37-4
150JPW-220-30	130-260	32-28	30-4	200JPW-400-6	240-480	7-5	11-6
150JPW-200-20	120-240	21.5-18.5	18.5-4	200JPW-250-5	150-300	6-4	5.5-6
150JPW-300-25	180-360	26.5-23	30-4	150JPW-130-5	80-160	6-4	5.5-6
