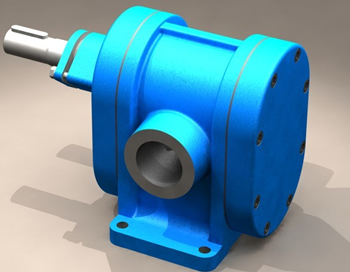

2CY gear oil pump

2CY series gear oil pumps are used for conveying non-lubricating oils, beverages, low-corrosive water, etc., used for conveying lubricating oil in various mechanical equipment with lubrication systems, suitable for conveying viscosity below 10°E (75C.ST) , Lubricating oil with temperature below 80℃

Features:

2CY series gear oil pump|gear type lubrication pump, mainly used to transport lubricating oil in various mechanical equipment with lubrication system, suitable for transporting lubricating oil with viscosity below 10°E (75C.ST) and temperature below 80°C The oil is also suitable for transporting corrosive, non-lubricating, and solid particles-containing media. If high temperature is required, contact the unit with high temperature resistant materials. Transport non-lubricating oils, beverages, low-corrosive water, etc.

In addition to ordinary motors, this series of gear oil pumps can also be equipped with explosion-proof motors of the same specification according to user needs. The user needs to propose the explosion-proof level of the explosion-proof motor (KB, B2d, B3d).

Performance parameter table:

型號(hào)規(guī)格	吸入及排出管口徑 (寸)	轉(zhuǎn)速 (r/min)	流量 (L/min)	功率 (kw)	排出壓力 (Mpa)	允許吸上真空度 (m)
2CY1.1/14.5-2（KCB-18.3）	3/4 ″	1450	18.3	1.5	1.45	5
2CY2/14.5-2（KCB-33.3）	3/4 ″	1450	33.3	2.2	1.45	5
2CY3.3/3.3-2（KCB-55）	1 ″	1450	55	1.5	0.33	5
2CY3.3/5-2（KCB-55）	1 ″	1450	55	2.2	0.33	5
2CY5/3.3-2（KCB-83.3）	1 1 / 2″	1450	83.3	2.2	0.33	5
2CY5/5-2（KCB83.3）	1 1 / 2″	1450	83.3	3	0.50	5
2CY8/3.3-2（KCB200）	2 ″	1450	200	4	0.33	5
2CY12/1.3-2（KCB200）	2 ″	1450	200	4	0.13	5
2CY12/3.3-2（KCB200）	2 ″	1450	200	5.5	0.33	5
2CY12/6-2（KCB200）	2 ″	1450	200	5.5	0.60	5
2CY12/10-2（KCB200）	2 1/2″	1450	200	7.5	1.00	5
2CY18/3.6-2（KCB300）	3 ″	1000	300	5.5	0.36	5
2CY18/3.6-2（KCB300）	3 ″	1450	300	7.5	0.36	5
2CY29/3.6-2（KCB483.3）	3 ″	1450	483.3	7.5	0.36	5
2CY29/10-2（KCB483.3）	3 ″	1450	483.3	11	1.00	5
2CY38/2.8-2（KCB633-2）	4 ″	1000	633	11	0.28	5
2CY38/8-2（KCB633-2）	4 ″	1450	633	22	0.80	5
2CY-60/3-2（KCB960-2）	4 ″	1450	960	18.5	0.30	5
2CY-60/6-2（KCB960-2）	4 ″	1450	960	30	0.30	5
