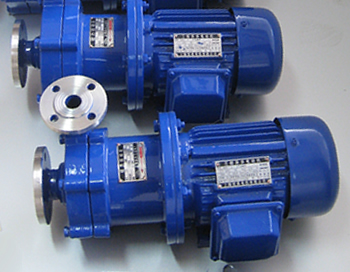

CQ stainless steel magnetic pump
CQ stainless steel magnetic pump is used in petroleum, chemical, pharmaceutical, electroplating, environmental protection, water treatment, national defense and other departments. It is an ideal equipment for conveying flammable, explosive, toxic and precious liquids.
I. Overview
CQ stainless steel magnetic drive pump is a new type of pump that uses the working principle of permanent magnet coupling to transfer torque without contact. When the prime mover drives the outer magnetic steel rotor, the magnetic field drives the inner magnetic steel rotor to rotate synchronously, and the inner magnetic steel rotor and The impeller is connected as a whole, so as to achieve the purpose of driving the impeller to rotate without contact. Because the liquid is enclosed in a stationary isolation sleeve, the magnetic pump is a fully enclosed, leak-free pump type.
In many fields such as petroleum, chemical industry, pharmaceuticals, electronics, etc., more and more manufacturers require a leak-free process environment for the medium they transport, and there is an urgent need to choose the ideal pump type. The CQ series magnetic pump produced by our company produces new products. Technology, new materials, new processes, isolation sleeves, impellers and other components are easily damaged technical problems. The CQB, IMD, CQ, CQF series magnetic pumps have passed the long-term productive continuous operation test of the unit.
Second, use
The flow parts of the CQ series stainless steel magnetic pump are made of stainless steel (304, 316, 316L), which are widely used in petroleum, chemical, pharmaceutical, electroplating, environmental protection, water treatment, etc., to transport flammable, explosive, toxic and precious liquids. The ideal equipment is to create a civilized workshop without leakage and pollution. Applicable temperature: -20℃～100℃.
3. Leak-proof design of magnetic pump
The static seal is used to replace the dynamic seal, and the magnetic coupling is used for indirect drive, which eliminates the trouble of dripping and does not pollute the use site. Eliminate environmental pollution, create "non-leakage workshop" and "non-leakage factory", and realize the ideal pump for safe and civilized production.
Fourth, the principle of operation
The driving device adopts an active magnet coupling to be directly mounted on the motor shaft, the pump chamber is completely closed, and the impeller on the rotor assembly is indirectly driven to rotate through magnetic coupling.
Five, performance parameter table
|
型號
|
軟管式接口
|
流量 (m3/h)
|
揚程
(m) |
電機功率(KW)
|
電壓V
|
|
|
進口
|
出口
|
|||||
|
14CQ-5
|
14
|
10
|
1.2
|
5
|
0.12
|
220/380
|
|
16CQ-8
|
16
|
12
|
1.5
|
8
|
0.18
|
220/380
|
|
20CQ-12
|
20
|
12
|
3
|
12
|
0.37
|
220/380
|
|
25CQ-15
|
25
|
20
|
6.6
|
15
|
1.1
|
380
|
|
32CQ-15
|
32
|
25
|
6.6
|
15
|
1.1
|
380
|
|
32CQ-25
|
32
|
25
|
6.6
|
25
|
1.1
|
380
|
|
40CQ-20
|
40
|
32
|
10.8
|
20
|
2.2
|
380
|
|
40CQ-32
|
40
|
32
|
12
|
32
|
4
|
380
|
|
50CQ-25
|
50
|
40
|
14.4
|
25
|
4
|
380
|
|
50CQ-32
|
50
|
40
|
13.2
|
32
|
4
|
380
|
|
50CQ-50
|
50
|
32
|
7.8
|
50
|
5.5
|
380
|
|
65CQ-25
|
65
|
50
|
16.8
|
25
|
5.5
|
380
|
|
65CQ-32
|
65
|
50
|
27
|
32
|
7.5
|
380
|
|
80CQ-32
|
80
|
65
|
51
|
32
|
11
|
380
|
|
50CQ-50
|
80
|
65
|
51
|
50
|
15
|
380
|
|
100CQ-32
|
100
|
80
|
60
|
32
|
15
|
380
|
|
100CQ-50
|
100
|
80
|
60
|
50
|
18.5
|
380
|
