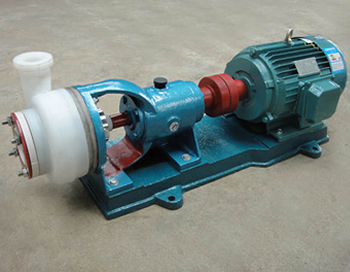

FSB (ZX) type fluorine plastic pump

FSB (ZX) type fluoroplastic pumps are widely used in chemical industry, acid making, alkali making, smelting, rare earth, pesticides, dyes, medicine, paper making, electroplating, electrolysis, pickling, radio, forming foil, scientific research institutions, national defense industry, etc. industry

product description:

The pump body of the FSB type fluoroplastic alloy pump is made of a metal shell lined with polyperfluoroethylene propylene (F46), and the pump cover, impeller and shaft sleeve are made of metal inserts outsourcing fluoroplastics to be integrally sintered and molded. The shaft seal adopts an external bellows mechanical seal. The static ring is made of 99% alumina ceramic or silicon nitride, and the moving ring is made of tetrafluoroethylene filling material, which is corrosion-resistant and wear-resistant. It is suitable for conveying any concentration of sulfuric acid, hydrochloric acid, acetic acid, hydrofluoric acid, nitric acid, aqua regia, strong alkali, Strong corrosive media with harsh conditions such as strong oxidants, organic solvents, and reducing agents. It has the advantages of compact and reasonable structure, strong corrosion resistance, tight and reliable sealing performance, stable work, low noise, high mechanical strength, no aging, no toxin decomposition, convenient maintenance, smooth flow channel, high efficiency, energy saving and so on. Avoid running, emitting, dripping and leaking, fluorine plastic alloy pump.

It is widely used in chemical industry, acid making, alkali making, smelting, rare earth, pesticides, dyes, medicine, paper making, electroplating, electrolysis, pickling, radio, chemical foil, scientific research institutions and other industries.

Features:

FSB type fluoroplastic alloy pump is composed of pump body, impeller, closure, seal, bracket, pump shaft, side shaft device, lifting bolt, nut and bottom plate.

1. Pump body: steel flanges are embedded in the connecting parts of the left and right sides, each made of molded plastic synthetic gold.

2. A stainless steel (1Cr18Ni9Ti) molded plastic alloy is embedded in the right side of the cover.

3. Impeller: The shaft connection method is adopted. The metal shaft is made of high-quality steel after finishing and outsourcing plastic synthetic gold molding, so that the impeller and the metal shaft are firmly integrated to ensure that the shaft root and the rear of the impeller can withstand the rotation Torque force, so that the wetted part of the medium is plastic alloy.

4. Mechanical seal: Adopt WB2 type, ST type without cooling water adjustable end face sealing technology, made of silicon carbide, high-purity alumina ceramics, filled with tetrafluoroethylene, graphite and other materials.

Performance parameter table:

規(guī)格型號	流量m3/h	揚(yáng) 程 m	入口 mm	出口 mm	配用功率 kw	轉(zhuǎn) 速 r/min	氣蝕余量 m	效率 %
25FSB-10L	1.5	10	25	20	1.5	2900	4.5	29
25FSB-18L	3.6	18	25	20	1.5	2900	4.5	27
40FSB-15L	5	15	40	32	1.5	2900	4.5	51
40FSB-20L	10	20	40	32	3	2900	4	47
40FSB-30L	10	30	40	32	3	2900	4	55
40FSB-40L	10	40	40	32	5.5	2900	4.5	35
40FSB-50L	10	50	40	32	7.5	2900	4.5	33
50FSB-20L	20	20	50	40	3	2900	3	55
50FSB-25L	15	25	50	40	4	2900	4	64.5
50FSB-30L	15	30	50	40	4	2900	4	70
50FSB-40L	15	40	50	40	5.5	2900	4.5	39
50FSB-50L	15	50	50	40	7.5	2900	4.5	38
65FSB-32L	29	32	65	50	5.5	2900	3.5	45
65FSB-40L	29	40	65	50	11	2900	4	53
80FSB-20L	50	20	80	65	5.5	2900	4	72
80FSB-30L	50	30	80	65	7.5	2900	4	64
80FSB-34L	50	34	80	50	11	2900	4	65
80FSB-40L	50	40	80	50	11	2900	4.5	67
80FSB-50L	50	50	80	50	15	2900	4.5	65
100FSB-15L	80	15	100	65	11	2900	4.5	72
100FSB-30L	100	30	100	80	15	2900	4	74
100FSB-40L	100	40	100	80	22	2900	4	74
100FSB-50L	100	50	100	80	30	2900	4.5	72
125FSB-12L	90	12	125	80	7.5	1450	4.5	73
125FSB-40L	150	40	125	80	37	2900	4	78

注：FSB（ZX）為自吸式氟塑料泵，詳情請詢我公司銷售人員！
