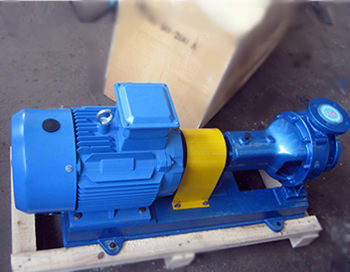

IHF type fluoroplastic lined chemical centrifugal pump
IHF chemical centrifugal pump is used to transport any concentration of sulfuric acid, hydrochloric acid, acetic acid, hydrofluoric acid, nitric acid, aqua regia, strong alkali, strong oxidant, organic solvent, reducing agent and other harsh conditions of highly corrosive media.
details:
The IHF pump is a single-stage single-suction fluoroplastic alloy chemical centrifugal pump. The pump has corrosion resistance, wear resistance, high temperature resistance, no aging, high mechanical strength, no toxin decomposition, wide use temperature, and the conveying medium temperature is -85℃ -200℃ and other advantages.


Features:

The pump body of the IHF series fluoroplastic lined centrifugal pump is made of a metal shell lined with polyperfluoroethylene propylene (F46); the pump cover, impeller and shaft sleeve are all made of metal inserts and fluoroplastics are integrally sintered and molded, and the shaft seal adopts an external bellow Mechanical seal; static ring uses 99.9% (alumina ceramic or silicon nitride); moving ring uses tetrafluoroethylene filling material. It is characterized by reliable corrosion-resistant and wear-resistant sealing performance.


Product Usage:

This pump is suitable for transporting any concentration of sulfuric acid, hydrochloric acid, acetic acid, hydrofluoric acid, nitric acid, aqua regia, strong bases, strong oxidants, organic solvents, reducing agents and other harsh corrosive media. It is currently the world's most innovative One of corrosion-resistant equipment. Its biggest advantages are reasonable structure, strong corrosion resistance, tight and reliable sealing performance, stable operation, low noise and long service life.


Performance parameter table:



   型   號

轉速2900r/min

轉速1450r/min

流量Q
(m3/h)

揚程H
(m)

汽蝕余量
(m)

泵效率
(%)

功率
(KW)

流量Q
(m3/h)

揚程H
(m)

汽蝕余量
(m)

泵效率
(%)

功率
(KW)

IHF50-32-125

12.5

20

2

50

1.38

6.3

5

2

45

0.19

IHF50-32-125A

11.4

16.5

2

50

1.02

5.7

4.2

2

44

0.15

IHF50-32-160

12.5

32

2

46

2.37

6.3

8

2

40

0.34

IHF50-32-160A

11.4

26.6

2

45

1.8

5.7

6.7

2

39

0.27

IHF50-32-200

12.5

50

2

39

4.36

6.3

12.5

2

33

0.65

IHF50-32-200A

11.7

43.7

2

38

3.7

5.9

10.9

2

32

0.55

IHF50-32-200B

11

38.7

2

37

3.1

5.5

9.7

2

31

0.47

IHF65-50-125

25

20

2

62

2.2

12.5

5

2

55

0.31

IHF65-50-125A

22.8

16.6

2

61

1.69

11.4

4.2

2

54

0.24

IHF65-50-160

25

32

2

57

3.82

12.5

8

2

51

0.53

IHF65-50-160A

22.8

26.6

2

56

2.95

11.4

6.7

2

50

0.42

IHF65-40-200

25

50

2

52

6.55

12.5

12.5

2

46

0.93

IHF65-40-200A

23.4

43.7

2

51

5.46

11.7

10.9

2

45

0.77

IHF65-40-200B

22

38.7

2

50

4.64

11

9.7

2

44

0.66

IHF85-65-125

50

20

3

68

3.95

25

5

2.5

64

0.53

IHF85-65-125A

45.6

16.6

3

68

3

22.8

4.2

2.5

63

0.41

IHF85-65-160

50

32

2.3

67

6.5

25

8

2

62

0.88

IHF85-65-160A

45.6

26.6

2.3

66

5

22.8

6.7

2

61

0.68

IHF85-65-200

50

50

2.5

63

10.8

25

12.5

2

57

1.49

IHF85-65-200A

46.8

43.7

2.5

62

9

23.4

10.9

2

56

1.24

IHF85-65-200B

44

38.7

2.5

61

7.6

22

9.7

2

55

1.06

IHF100-80-125

100

20

3.2

73

7.46

50

5

2

69

1

IHF100-80-125A

91.2

16.6

3.2

72

5.7

45.6

4.2

2

68

0.8

IHF100-80-160

100

32

3.2

73

11.9

50

8

3.4

69

1.58

IHF100-80-160A

91.2

26.6

3.2

72

9.2

45.6

6.7

3.4

68

1.22

IHF100-65-200

100

50

3.2

72

18.9

50

12.5

2.5

68

2.5

IHF100-65-200A

93.6

43.7

3.2

71

15.7

46.8

10.9

2.5

67

2.1

IHF100-65-200B

88

38.7

3.2

70

13.2

44

9.7

2.5

66

1.76

IHF100-65-250

100

80

4.0

45

31.6

50

20

4.5

5.5

4.3

IHF125-65-250A

93.5

70

4.5

37

26.2

　

　
