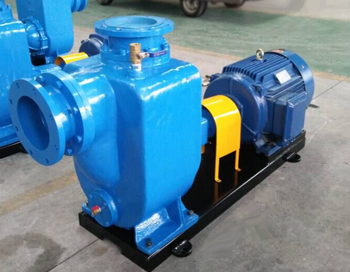

ZX self-priming centrifugal pump
ZX self-priming centrifugal pump is used for urban environmental protection, construction, fire protection, chemical industry, pharmaceuticals, printing and dyeing, brewing, electric power, electroplating, papermaking, petroleum, mining, equipment cooling, etc.
product description
The ZX self-priming pump is an energy-saving pump product developed after absorbing, digesting and improving the relevant technical data at home and abroad. The pump is a self-priming centrifugal pump, which has the advantages of compact structure, convenient operation, stable operation, easy maintenance, high efficiency, long life, and strong self-priming ability. There is no need to install a bottom valve in the pipeline, and only need to ensure that the pump body has a quantitative priming liquid before work. Therefore, the piping system is simplified and working conditions are improved.
Features
There is no need to install a bottom valve in the pipeline, just make sure that there is a certain amount of water in the pump body before work. According to the customer's use of media, there are cast iron materials and 304, 316L materials, medium temperature -20℃-120℃, flow rate: 3.2-600m3 /h Head: 10-80m Rotate speed 1450-2900r/min
Product Usage
Mainly suitable for urban environmental protection, construction, fire protection, chemical industry, pharmaceutical, printing and dyeing, brewing, electric power, electroplating, papermaking, petroleum, mining, equipment cooling, etc. It is suitable for clean water, sea water, chemical medium liquid with acidity and alkalinity and slurry with general paste. The medium viscosity is 100 centipoise and the solid content can reach 30% or less.
Performance parameter table
|
型號 |
進口 |
出口 |
吸程 |
電機 |
流量 |
揚程 |
|
25ZX3.2-20 |
25 |
25 |
6.5 |
0.75 |
3.2 |
20 |
|
25ZX3.2-32 |
25 |
25 |
6.5 |
1.1 |
3.2 |
32 |
|
40ZX6.3-20 |
40 |
32 |
6.5 |
1.1 |
6.3 |
20 |
|
40ZX10-40 |
40 |
40 |
6.5 |
4 |
10 |
40 |
|
50ZX15-12 |
50 |
50 |
6.5 |
1.5 |
15 |
12 |
|
50ZX18-20 |
50 |
50 |
6.5 |
2.2 |
18 |
20 |
|
50ZX20-30 |
50 |
50 |
6.5 |
4 |
20 |
30 |
|
50ZX10-40 |
50 |
50 |
6.5 |
4 |
10 |
40 |
|
50ZX12.5-50 |
50 |
50 |
6.5 |
5.5 |
12.5 |
50 |
|
50ZX15-60 |
50 |
50 |
6.5 |
7.5 |
15 |
60 |
|
65ZX30-15 |
65 |
50 |
6.5 |
3 |
30 |
15 |
|
65ZX25-32 |
65 |
50 |
6 |
5.5 |
25 |
32 |
|
80ZX35-13 |
80 |
65 |
6 |
2.2 |
35 |
13 |
|
80ZX40-22 |
80 |
65 |
6 |
5.5 |
40 |
22 |
|
80ZX50-32 |
80 |
80 |
6 |
7.5 |
50 |
32 |
|
80ZX60-55 |
80 |
80 |
6 |
15 |
60 |
55 |
|
80ZX60-70 |
80 |
80 |
6 |
22 |
60 |
70 |
|
100ZX100-20 |
100 |
80 |
6 |
11 |
100 |
20 |
|
100ZX100-40 |
100 |
100 |
6 |
18.5 |
100 |
40 |
|
100ZX100-65 |
100 |
100 |
6 |
30 |
100 |
65 |
|
100ZX70-80 |
100 |
100 |
6 |
30 |
70 |
80 |
|
150ZX160-55 |
150 |
100 |
5 |
45 |
160 |
55 |
|
150ZX150-80 |
150 |
100 |
5 |
55 |
150 |
80 |
|
200ZX280-65 |
200 |
150 |
5 |
90 |
280 |
65 |
