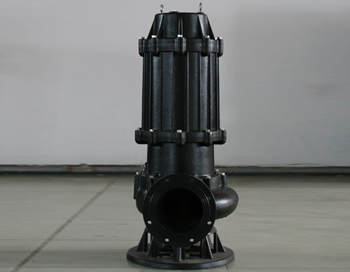

JYWQ automatic mixing submersible sewage pump

JYWQ automatically stirs even the sewage pump, stirs the sediment in the sewage tank into suspended matter, and sucks it into the pump and discharges it. Purpose: Discharge of seriously polluted wastewater from factories and businesses. Drainage systems of urban sewage treatment plants, hospitals, and hotels. Sewage drainage station in residential area. The water supply device of the drainage station of the civil air defense system and the water plant. Municipal engineering, construction site. Attached equipment for exploration, mining, and power plants. Rural biogas digesters, farmland irrigation, and river pond dredging.

Overview:

JYWQ series automatic mixing sewage pump adopts automatic mixing device on the basis of ordinary sewage pump. The device rotates with the motor shaft to generate extremely strong stirring force, stir the sediment in the sewage tank into suspended matter, and suck it into the pump for discharge. The pump's anti-blocking and sewage discharge capabilities are improved, drainage, sewage cleaning, and silt removal are completed at one time, and operating costs are saved. It is an environmentally friendly product with obvious usability.

main feature:

1. When the automatic mixing sewage pump is running, the sediment at the bottom of the pool is automatically stirred to completely prevent the accumulation of dirt without manual cleaning;

2. The unique impeller design has the function of shredding and tearing fibers and sundries;

3. Adopt the external circulation cooling system to make the sewage pump run at low water level, reduce the starting frequency of the motor, and prolong the life of the motor;

Model meaning:

Example: 80JYWQ50-10-1600-3 80-discharge port diameter (mm)

JYWQ-automatic mixing sewage pump 5

0-Flow (m3/h)

10-Head (m)

1600-mixing range (mm)

3- Motor power (KW)

The main purpose:

1. Discharge of wastewater from factories and businesses seriously polluted. 2. Drainage systems of urban sewage treatment plants, hospitals, and hotels.

3. Sewage drainage station in residential area. 4. The water supply device of the drainage station of the civil air defense system and the water supply plant. 5. Municipal engineering, construction site. 6. Attached equipment for exploration, mining, and power plants. 7. Rural biogas digesters, farmland irrigation, and river pond dredging.

Performance parameter table:

序號	型號	排出口徑 (mm)	額定流量 (m3/h)	額定揚程 (m)	攪拌直徑 (mm)	轉速 (r/min)	效率 (%)	自動 耦合器
1	JYWQ50-12-15-1200-1.5	50	12	15	1200	2900	48	CAK-50
2	JYWQ50-20-7-1200-1.1	50	20	7	1200	2900	62	CAK-50
3	JYWQ50-10-10-1200-1.1	50	10	10	1200	2900	56	CAK-50
4	JYWQ50-15-15-1200-2.2	50	15	15	1200	2900	51	CAK-50
5	JYWQ50-25-10-1200-2.2	50	25	10	1200	2900	65	CAK-50
6	JYWQ50-15-20-1200-2.2	50	15	20	1200	2900	56	CAK-50
7	JYWQ50-20-15-1200-2.2	50	20	15	1200	2900	56	CAK-50
8	JYWQ50-42-9-1200-3	50	42	9	1200	2900	56	CAK-50
9	JYWQ50-17-25-1200-3	50	17	25	1200	2900	56	CAK-50
10	JYWQ50-25-22-1200-4	50	25	22	1200	2900	62	CAK-50
11	JYWQ50-40-15-1400-4	50	40	15	1400	2900	70	CAK-50
12	JYWQ50-25-32-1600-5.5	50	25	32	1600	2900	52	CAK-50
13	JYWQ50-40-30-1600-7.5	50	40	30	1600	2900	68	CAK-50
14	JYWQ65-25-15-1400-3	65	25	15	1400	2900	65	CAK-65
15	JYWQ65-37-13-1400-3	65	37	13	1400	2900	62	CAK-65
16	JYWQ65-25-28-1400-4	65	25	28	1400	2900	60	CAK-65
17	JYWQ80-40-7-1600-2.2	80	40	7	1600	2900	54	CAK-80
18	JYWQ80-29-8-1600-2.2	80	29	8	1600	2900	54	CAK-80
19	JYWQ80-43-13-1600-4	80	43	13	1600	2900	63	CAK-80
20	JYWQ80-50-10-1600-3	80	50	10	1600	1450	76	CAK-80
21	JYWQ80-40-15-1600-4	80	40	15	1600	2900	70	CAK-80
22	JYWQ80-60-13-1600-4	80	60	13	1600	2900	70	CAK-80
23	JYWQ80-35-25-1600-5.5	80	35	25	1600	2900	64	CAK-80
24	JYWQ80-50-25-1600-7.5	80	50	25	1600	2900	70	CAK-80
25	JYWQ80-50-30-1600-7.5	80	50	30	1600	2900	70	CAK-80
26	JYWQ100-80-9-2000-4	100	80	9	2000	1450	62	CAK-100
27	JYWQ100-110-10-2000-5.5	100	110	10	2000	1450	71	CAK-100
28	JYWQ100-70-15-2000-5.5	100	70	15	2000	1450	71	CAK-100
29	JYWQ100-100-15-2000-7.5	100	100	15	2000	1450	73	CAK-100
30	JYWQ100-80-20-2000-7.5	100	70	20	2000	2900	71	CAK-100
31	JYWQ100-50-35-2000-11	100	100	35	2000	2900	68	CAK-100
32	JYWQ100-70-22-2000-7.5	100	80	22	2000	2900	70	CAK-100
33	JYWQ100-100-22-2000-15	100	150	22	2000	1450	61	CAK-100
34	JYWQ100-80-30-2000-15	100	210	30	2000	1450	67	CAK-100
35	JYWQ150-150-10-2000-7.5	150	250	10	2000	1450	75	CAK-150
36	JYWQ150-210-7-2500-7.5	150	150	7	2500	1450	78	CAK-150
37	JYWQ150-250-6-2500-7.5	150	200	6	2500	1450	79	CAK-150
38	JYWQ150-150-15-2500-11	150	65	15	2500	1450	79	CAK-150
39	JYWQ150-200-10-2500-15	150	180	10	2500	1450	73	CAK-150
40	JYWQ150-65-40-3200-18.5	150	150	40	3200	1450	58	CAK-150
41	JYWQ150-180-22-2600-18.5	150	110	22	2600	1450	75	CAK-150
42	JYWQ150-150-26-2600-18.5	150	300	26	2600	1450	72	CAK-150
43	JYWQ150-110-30-2600-18.5	150	130	30	2600	1450	72	CAK-150
44	JYWQ150-300-15-2600-22	150	100	15	2600	1450	76	CAK-150
45	JYWQ150-130-30-2600-22	150	300	30	2600	1450	70	CAK-150
46	JYWQ150-100-40-3000-30	150	250	40	3000	1450	64	CAK-150
47	JYWQ200-300-7-3000-11	200	300	7	3000	1450	75	CAK-200
48	JYWQ200-250-11-3000-15	200	250	11	3000	1450	72	CAK-200
49	JYWQ200-300-10-3000-15	200	300	10	3000	1450	75	CAK-200
50	JYWQ200-250-15-3000-18.5	200	250	15	3000	1450	72	CAK-200
51	JYWQ200-400-10-3000-22	200	400	10	3000	1450	75	CAK-200
52	JYWQ200-200-20-3000-22	200	200	20	3000	1450	73	CAK-200
53	JYWQ200-250-22-3000-30	200	250	22	3000	1450	73	CAK-200
54	JYWQ250-600-7-3000-22	250	600	7	3000	1450	78	CAK-250
55	JYWQ250-600-9-3000-30	250	600	9	3000	1450	78	CAK-250
