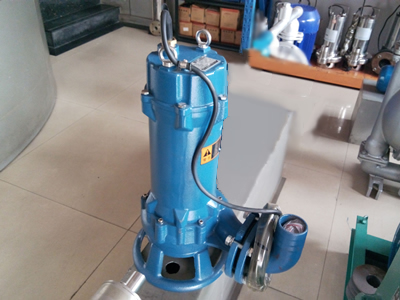

WQAS type non-clogging cutting submersible sewage pump
WQAS type non-clogging cutting submersible sewage pump, used in factories, commerce, hospitals, hotels, urban sewage treatment plants, municipal engineering, construction sites, exploration, mining supporting equipment, civil air defense, rural biogas digesters, irrigation and other seriously polluting wastewater emission
Overview:
The AS and AV submersible sewage pumps are developed by our company using German technology. This series of pumps has a torn structure, which can tear and cut long fibers, bags, belts, grass, cloth strips and other substances in the sewage. Then it is discharged smoothly, which is especially suitable for conveying liquids containing hard solids and fibrous materials and particularly dirty, sticky and slippery liquids. This series of sewage pumps is hydraulic and mature. The products have been tested for performance and all indicators meet the relevant design requirements.
All the products of our company adopt computer design and optimization processing. The company has strong technical force, rich production experience and perfect testing methods, so as to ensure the stable and reliable product quality.
main feature:
It has strong sewage discharge capacity, no clogging, and can effectively pass solid particles with a diameter of φ30-φ80 mm.
The tearing mechanism can tear and cut the fiber material, and then discharge it smoothly, without adding a filter to the pump.
The design is reasonable, the power of the matching motor is small, and the energy saving effect is remarkable.
The mechanical seal of the new material can make the pump safe and continuous operation for more than 8000 hours.
The structure is compact, easy to move, simple to install, which can reduce the project cost without building a pump house.
It can be used in the full range of head, and the motor will not be overloaded.
The floating ball sky can also automatically control the start and stop of the pump according to the required water level change, without special care.
The double guide rail automatic installation system brings great convenience to installation and maintenance, and people don't have to go in and out of the sump for this.
Equipped with a fully automatic protection control box to effectively protect the leakage, water leakage and overload of the product, and improve the safety and reliability of the product.
The main purpose:
Discharge of seriously polluted wastewater from factories and businesses
Sewage discharge from hospitals and hotels
Discharge system of municipal sewage treatment plant
Municipal engineering, construction site
Sewage drainage system in residential area
Auxiliary equipment for exploration and mining
Civil air defense system drainage station
Rural biogas digesters, farmland irrigation
Use range:
Flow rate: 15-145m3/h
Head: 4-25m
Speed: 1450-2900r/min
Caliber: φ76-φ152
Temperature range: -15-+40℃
Working pressure: ≤1.0Mpa
Model meaning:
For example: AS/AV 10-2W/CB-A
AS-single blade impeller
AV-Swirl Impeller
10- Motor power P2×10 (to be adjusted)
2- The number of pole pairs of the motor
W-voltage is 220V
Performance parameters:
|
型號(hào) |
流量 |
揚(yáng)程 |
功率 |
轉(zhuǎn)速 |
額定電壓 |
配用膠管內(nèi)徑 |
|
AS10-2W/CB |
15 |
4 |
1.1 |
2850 |
220 |
80 |
|
AS16-2/CB |
25 |
8 |
1.5 |
2850 |
220 |
80 |
|
AS10-2CB |
15 |
4.5 |
1.1 |
2850 |
380 |
80 |
|
AS10-2CBA |
8 |
8 |
1.1 |
2850 |
380 |
80 |
|
AS16-2CB |
29 |
7.6 |
1.5 |
2850 |
380 |
80 |
|
AS22-2CB |
40 |
10 |
2.2 |
2850 |
380 |
80 |
|
AS30-2CB |
42 |
11 |
3 |
2850 |
380 |
80 |
|
AS40-2CB |
40 |
14 |
4 |
2850 |
380 |
80 |
|
AS55-2CB |
45 |
13 |
5.5 |
2850 |
380 |
100 |
|
AS75-2CB |
60 |
18 |
7.5 |
2850 |
380 |
100 |
|
AS55-4CB |
100 |
7.5 |
5.5 |
1450 |
380 |
150 |
|
AS75-4CB |
145 |
10 |
7.5 |
1450 |
380 |
150 |
|
AV14-4 |
35 |
4 |
1.5 |
1450 |
380 |
80 |
|
AV22-2 |
15 |
20 |
2.2 |
2850 |
380 |
80 |
|
AV40-2 |
25 |
22 |
4 |
2850 |
380 |
80 |
|
AV55-2 |
60 |
14 |
5.5 |
2850 |
380 |
100 |
|
AV75-2 |
60 |
20 |
7.5 |
2850 |
380 |
100 |
