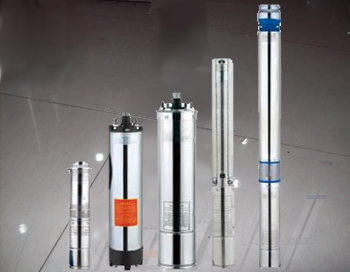

QJ stainless steel deep well submersible pump
QJ stainless steel deep well submersible pump is used to extract groundwater from deep wells, and can also be used for water lifting projects such as rivers, reservoirs, and canals.
details:
The QJ type submersible pump for wells is a water lifting device that is directly connected to a motor and a water pump to submerge into the water. It is suitable for extracting groundwater from deep wells, and can also be used for water lifting projects such as rivers, reservoirs, and canals: mainly used for farmland irrigation and plateau mountainous areas. Water for humans and animals can also be used for water supply and drainage in cities, factories, railways, mines and construction sites.
main feature:
1. The motor and water pump body are submerged into the water to operate, which is safe and reliable.
2. There are no special requirements for well pipes and pumping pipes (ie: steel pipe wells, ash pipe wells, earth wells, etc. can be used; steel pipes, rubber pipes, plastic pipes, etc. can be used as pumping pipes under pressure permitting).
3. It is convenient and simple to install, use, and maintain, and it has a small footprint and no need to build a pump house.
4. Simple structure, saving raw materials. Whether the submersible electric pumps are used in suitable conditions and managed properly have a direct relationship with the service life.
Performance parameter table:
|
噸/天 |
序號(hào) |
通用型號(hào) |
電機(jī)功率 |
單相電流 |
三相電流 |
流量/揚(yáng)程 |
出水 |
適用 |
|||
|
m3/24h |
口徑 |
井徑 |
|||||||||
|
|
HP |
KW |
A |
A |
(m3/h)/(m) |
mm |
mm |
||||
| 43m3 | 1 | 100QJ1.8-/21-10 | 0.33 | 0.25 | - | 2.5 | 1.2/25 | 1.8/21 | 2.4/15 | 25mm 1"G |
75 |
| 2 | 100QJ1.8-/33-16 | 0.5 | 0.37 | 1.8 | 3.3 | 1.2/41 | 1.8/33 | 2.4/24 | |||
| 3 | 100QJ1.8-/48-23 | 0.75 | 0.55 | 2.1 | 4.4 | 1.2/58 | 1.8/48 | 2.4/34 | |||
| 4 | 100QJ1.8-/66-32 | 1 | 0.75 | 2.5 | 5.7 | 1.2/81 | 1.8/66 | 2.4/48 | |||
| 5 | 100QJ1.8-/92-46 | 1.5 | 1.1 | 3.5 | - | 1.2/113 | 1.8/92 | 2.4/65 | |||
| 40m3 | 6 | 100QJ1.2-59/8 | 0.5 | 0.37 | 3.6 | 1.8 | 0.6/67 | 1.2/59 | 1.8/46 | 30mm | 100 |
| 7 | 100QJ1.2-86/12 | 0.75 | 0.55 | 4.8 | 2 | 0.6/98 | 1.2/86 | 1.8/68 | 1"1/4G | ||
| 8 | 100QJ1.2-101/14 | 1 | 0.75 | 6.3 | 2.5 | 0.6/114 | 1.2/101 | 1.8/80 | |||
| 9 | 100QJ1.2-115/16 | 1.5 | 1.1 | 8.6 | 3.4 | 0.6/131 | 1.2/115 | 1.8/90 | |||
| 10 | 100QJ1.2-158/22 | 2 | 1.5 | 10 | 4.4 | 0.6/180 | 1.2/158 | 1.8/124 | |||
| 11 | 100QJ1.2-203/28 | 3 | 2.2 | 14 | 6.2 | 0.6/229 | 1.2/203 | 1.8/158 | |||
| 60m3 | 12 | 100QJ2-40/6 | 0.5 | 0.37 | 3.6 | 1.8 | 1.5/43 | 2/40 | 3/30 | 30mm | |
| 13 | 100QJ2-56/8 | 0.75 | 0.55 | 4.8 | 2 | 1.5/60 | 2/56 | 3/42 | 1"1/4G | ||
| 14 | 100QJ2-83/12 | 1 | 0.75 | 6.3 | 2.5 | 1.5/89 | 2/83 | 3/62 | |||
| 15 | 100QJ2-109/16 | 1.5 | 1.1 | 8.6 | 3.4 | 1.5/116 | 2/109 | 3/81 | |||
| 16 | 100QJ2-137/20 | 2 | 1.5 | 10 | 4.4 | 1.5/146 | 2/137 | 3/102 | |||
| 17 | 100QJ2-200/30 | 3 | 2.2 | 14 | 6.2 | 1.5/214 | 2/200 | 3/142 | |||
| 18 | 100QJ2-254/40 | 4 | 3 | - | 8.3 | 1.5/281 | 2/254 | 3/180 | |||
| 19 | 100QJ2-310/50 | 5.5 | 4 | - | 10.3 | 1.5/330 | 2/310 | 3/235 | |||
| 100m3 | 20 | 100QJ4-30/6 | 0.75 | 0.55 | 4.8 | 2 | 3/3 | 4/30 | 5/22 | 40mm | |
| 21 | 100QJ4-39/9 | 1 | 0.75 | 6.3 | 2.5 | 3/46 | 4/39 | 5/43 | 1"1/2G | ||
| 22 | 100QJ4-60/12 | 1.5 | 1.1 | 8.6 | 3.4 | 3/69 | 4/60 | 5/43 | |||
| 23 | 100QJ4-80/16 | 2 | 1.5 | 10 | 4.4 | 3/90 | 4/80 | 5/58 | |||
| 24 | 100QJ4-100/20 | 3 | 2.2 | 14 | 6.2 | 3/115 | 4/100 | 5/70 | |||
| 25 | 100QJ4-120/24 | 4 | 3 | - | 8.3 | 3/138 | 4/120 | 5/86 | |||
| 26 | 100QJ4-140/30 | 4 | 3 | - | 8.3 | 3/165 | 4/140 | 5/102 | |||
| 27 | 100QJ4-180/40 | 5.5 | 4 | - | 10.3 | 3/210 | 4/180 | 5/129 | |||
| 28 | 100QJ4-255/55 | 7.5 | 5.5 | - | 14 | 3/287 | 4/255 | 5/180 | |||
| 29 | 100QJ4-340/75 | 10 | 7.5 | - | 18.5 | 3/375 | 4/340 | 5/245 | |||
| 150m3 | 30 | 100QJ6-28/6 | 1 | 0.75 | 4.8 | 2.5 | 4/36 | 6/28 | 7/20 | ||
| 31 | 100QJ6-40/9 | 1.5 | 1.1 | 8.6 | 3.4 | 4/53 | 6/40 | 7/30 | |||
| 32 | 100QJ6-47/11 | 2 | 1.5 | 10 | 4.4 | 4/65 | 6/47 | 7/33 | |||
| 33 | 100QJ6-59/13 | 2 | 1.5 | 10 | 4.4 | 4/78 | 6/59 | 7/40 | |||
| 34 | 100QJ6-83/18 | 3 | 2.2 | 14 | 6.2 | 4/108 | 6/83 | 7/57 | |||
| 35 | 100QJ6-110/23 | 4 | 3 | - | 8.3 | 4/152 | 6/110 | 7/85 | |||
| 36 | 100QJ6-144/32 | 5.5 | 4 | - | 10.3 | 4/190 | 6/144 | 7/103 | |||
| 37 | 100QJ6-176/40 | 7.5 | 5.5 | - | 13.7 | 4/235 | 6/176 | 7/127 | |||
| 38 | 100QJ6-213/56 | 10 | 7.5 | - | 18.5 | 4/309 | 6/213 | 7/148 | |||
| 200m3 | 39 | 100QJ8-35/8 | 2 | 1.5 | 10 | 4.4 | 6/44 | 8/35 | 10/24 | 50mm | |
| 40 | 100QJ8-61/13 | 3 | 2.2 | 14 | 6.2 | 6/75 | 8/61 | 10/43 | 2 "G | ||
| 41 | 100QJ8-84/17 | 4 | 3 | - | 8.3 | 6/100 | 8/84 | 10/59 | |||
| 42 | 100QJ8-96/20 | 4 | 3 | - | 8.6 | 6/118 | 8/96 | 10/68 | |||
| 43 | 100QJ8-118/24 | 5.5 | 4 | - | 10.3 | 6/141 | 8/118 | 10/86 | |||
| 44 | 100QJ8-143/30 | 7.5 | 5.5 | - | 13.7 | 6/169 | 8/143 | 10/98 | |||
| 45 | 100QJ8-171/35 | 10 | 7.5 | - | 18.5 | 6/205 | 8/171 | 10/118 | |||
| 300m3 | 46 | 100QJ10-26/7 | 2 | 1.5 | 10 | 4.4 | 8/29 | 10/26 | 14/20 | ||
| 47 | 100QJ10-39/10 | 3 | 2.2 | 14 | 6.2 | 8/44 | 10/39 | 14/29 | |||
| 48 | 100QJ10-56/13 | 4 | 3 | - | 8.3 | 8/61 | 10/56 | 14/43 | |||
| 49 | 100QJ10-75/17 | 5.5 | 4 | - | 10.3 | 8/82 | 10/75 | 14/59 | |||
| 50 | 100QJ10-100/22 | 7.5 | 5.5 | - | 13.7 | 8/109 | 10/100 | 14/79 | |||
| 51 | 100QJ10-130/28 | 10 | 7.5 | - | 18.5 | 8/142 | 10/130 | 14/102 | |||
| 400m3 | 52 | 100QJ16-25/7 | 3 | 2.2 | 14 | 6.2 | 12/31 | 16/25 | 20/19 | ||
| 53 | 100QJ16-36/10 | 4 | 3 | - | 8.3 | 12/44 | 16/36 | 20/28 | |||
| 54 | 100QJ16-50/14 | 5.5 | 4 | - | 10.3 | 12/62 | 16/50 | 20/36 | |||
|
55
|
100QJ16-63/18 | 7.5 | 5.5 | - | 13.7 | 12/79 | 16/63 | 20/59 | |||
| 56 | 100QJ16-75/21 | 10 | 7.5 | - | 18.5 | 12/93 | 16/75 | 20/68 | |||
| 57 | 100QJ16-94/25 | 10 | 7.5 | - | 18.5 | 12/114 | 16/94 | 20/83
|
|
||
