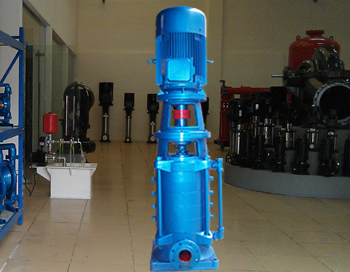

DL (R) vertical multistage centrifugal pump

DL, DLR pump multi-stage segmented centrifugal pump is suitable for industrial and urban water supply and drainage, high-rise building pressurized water supply, fire pressurization, long-distance water supply, heating, bathroom, boiler heating and cooling water cycle pressurization, air conditioning and refrigeration system water supply and equipment Matching and other occasions. The use temperature of DL type medium does not exceed 80℃, and the use temperature of DIR type medium does not exceed 120℃.

Structural features:

DL and DLR pumps are vertical single-suction multi-stage segmented centrifugal pumps, which are used to transport clear water without solid particles and liquids with physical and chemical properties similar to water. Mainly used for water supply in high-rise buildings, it can also be used in factories and mines for water supply and drainage and liquid transportation. The flow range is 4.9-200m3/h, the head range is 22-239m, the supporting power range is 1.5-160KW, and the caliber range is φ40-φ150mm. The DL and DLR series of multi-stage segmented centrifugal pumps produced by our factory are reliable in quality and stable in performance. All new and old customers are welcome to purchase.

The main purpose of DL type multistage centrifugal pump:

Performance parameter table:

型　號	級 數	流量		揚　程 (m)	轉　速 (r/min)	軸功率 (kw)	電機功率 (kw)	效　率 (%)	吸　程 (m)	汽蝕余量 (m)
型　號	級 數	(m³/h)	(L/S)	揚　程 (m)	轉　速 (r/min)	軸功率 (kw)	電機功率 (kw)	效　率 (%)	吸　程 (m)	汽蝕余量 (m)
40DL	2	6.2	1.72	23.6	1450	0.92	1.5	40	7	3.19
	3	6.2	1.72	35.4		1.38	2.2	40	7	3.19
	4	6.2	1.72	47.2		1.84	3	40	7	3.19
	5	6.2	1.72	59		2.3	4	40	7	3.19
	6	6.2	1.72	70.8		2.75	4	40	7	3.19
	7	6.2	1.72	82.6		3.22	5.5	40	7	3.19
	8	6.2	1.72	94.4		3.68	5.5	40	7	3.19
	9	6.2	1.72	106.2		4.14	7.5	40	7	3.19
	10	6.2	1.72	118		4.6	7.5	40	7	3.19
	11	6.2	1.72	129.8		5.06	7.5	40	7	3.19
	12	6.2	1.72	141.6		5.52	11	40	7	3.19
50DL	2	12.6	3.5	24.4	1450	1.55	3	54	7.6	2.66
	3	12.6	3.5	36.6		2.33	3	54	7.6	2.66
	4	12.6	3.5	48.8		3.1	4	54	7.6	2.66
	5	12.6	3.5	61		3.88	5.5	54	7.6	2.66
	6	12.6	3.5	73.2		4.65	5.5	54	7.6	2.66
	7	12.6	3.5	85.4		5.43	7.5	54	7.6	2.66
	8	12.6	3.5	97.6		6.2	7.5	54	7.6	2.66
	9	12.6	3.5	109.8		6.98	11	54	7.6	2.66
	10	12.6	3.5	122		7.75	11	54	7.6	2.66
65DL	2	30	8.33	32	1450	4.22	5.5	62	7.6	2.82
	3	30	8.33	48		6.33	7.5	62	7.6	2.82
	4	30	8.33	64		8.44	11	62	7.6	2.82
	5	30	8.33	80		10.55	15	62	7.6	2.82
	6	30	8.33	96		12.66	15	62	7.6	2.82
	7	30	8.33	112		14.77	18.5	62	7.6	2.82
	8	30	8.33	128		16.88	22	62	7.6	2.82
	9	30	8.33	144		18.99	22	62	7.6	2.82
	10	30	8.33	160		21.1	30	62	7.6	2.82
80DL	2	50.4	14	40	1450	7.84	11	70	7.8	22.49
	3	50.4	14	60		11.76	15	70	7.8	2.49
	4	50.4	14	80		15.68	22	70	7.8	2.49
	5	50.4	14	100		19.6	30	70	7.8	2.49
	6	50.4	14	120		23.52	30	70	7.8	2.49
	7	50.4	14	140		27.44	37	70	7.8	2.49
	8	50.4	14	160		31.36	45	70	7.8	2.49
	9	50.4	14	180		35.28	45	70	7.8	2.49
	10	50.4	14	200		39.2	55	70	7.8	2.49
100DL-72-20	2	72	20	40	1450	10.9	15	72	8	2.8
	3	72	20	60		10.9	18.5	72	8	2.8
	4	72	20	80		10.9	30	72	8	2.8
	5	72	20	100		10.9	37	72	8	2.8
	6	72	20	120		10.9	37	72	8	2.8
	7	72	20	140		10.9	45	72	8	2.8
	8	72	20	160		10.9	55	72	8	2.8
	9	72	20	180		10.9	55	72	8	2.8
	10	72	20	200		54.4	70	72	8	2.8
100DL-100-20	2	100	27.8	40	1450	15.14	18.5	72	7.2	3.53
	3	100	27.8	60		22.72	30	72	7.2	3.53
	4	100	27.8	80		30.28	37	72	7.2	3.53
	5	100	27.8	100		37.86	45	72	7.2	3.53
	6	100	27.8	120		45.39	55	72	7.2	3.53
	7	100	27.8	140		53	75	72	7.2	3.53
	8	100	27.8	160		60.57	75	72	7.2	3.53
	9	100	27.8	180		68.14	90	72	7.2	3.53
	10	100	27.8	200		75.71	90	72	7.2	3.53
150DL-150-20	2	150	27.8	40	1450	20.42	30	80	5.7	2.8
	3	150	27.8	60		30.63	37	80	5.7	2.8
	4	150	27.8	80		40.84	45	80	5.7	2.8
	5	150	27.8	100		51.05	55	80	5.7	2.8
	6	150	27.8	120		61.26	75	80	5.7	2.8
	7	150	27.8	140		74.47	75	80	5.7	2.8
	8	150	27.8	160		81.68	90	80	5.7	2.8
200DL-280-30	2	280	41.6	60	1450	55.79	90	84	6	3.7
	3	280	41.6	90		83.69	110	84	6	3.7
	4	280	41.6	120		111.57	132	84	6	3.7
	5	280	41.6	150		139.47	160	84	6	3.7
	6	280	41.6	180		163.38	200	84	6	3.7
